Custom coaxial or waveguide vector network analyzer (VNA) calibration kits

Kirkby Microwave can produce custom vector network analyzer (VNA) calibration kits, for either waveguide or coaxial applications. Whilst some people have asked us to produce a female SMA calibration kit or a male SMA calibration kit, it is not much cheaper than producing a full kit, but we do sometimes sell parts of a kit, if a customer has some of their own parts. Here are a selection of custom calibration kits we have made for customers.

Custom WR90 waveguide calibration kit.

This kit was provided to a military customer, and consisted of:

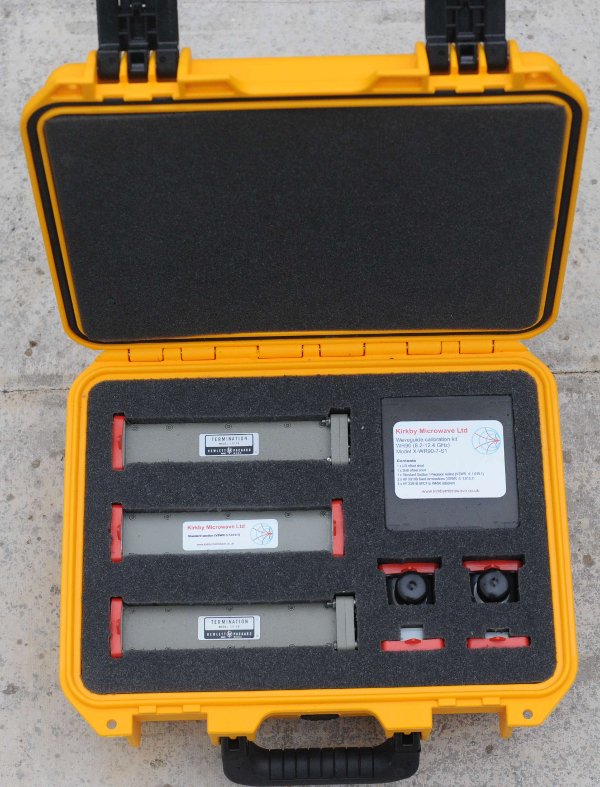

WR90 waveguide calibration kit

Custom WR75 waveguide calibration kit.

This kit was produced for an amateur radio enthusiast F5BQP. The customer supplied the wooden box he wanted the components fitted into, along with a couple of the components, including the orange load, which was a temporary load while he waited to receive a Maury Microwave fixed load, to match the other components. The kit consisted of:

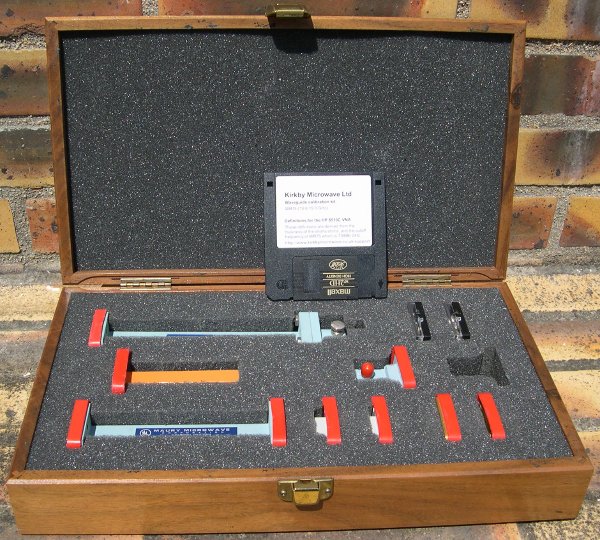

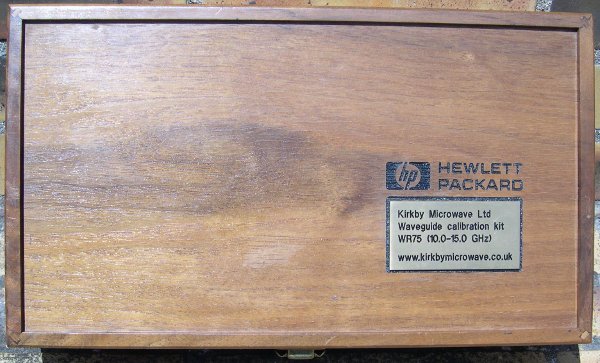

WR75 waveguide kit box WR75 waveguide calibration kit load, offset shorts

Kirkby Microwave built this kit to the customers specifications, using a combination of parts the customer supplied to Kirkby Microwave, and parts Kirkby Microwave purchased. The foam insert was cut so that the customer could add the Maury Microwave waveguide load once he had obtained one.

Custom SC coaxial calibration kit.

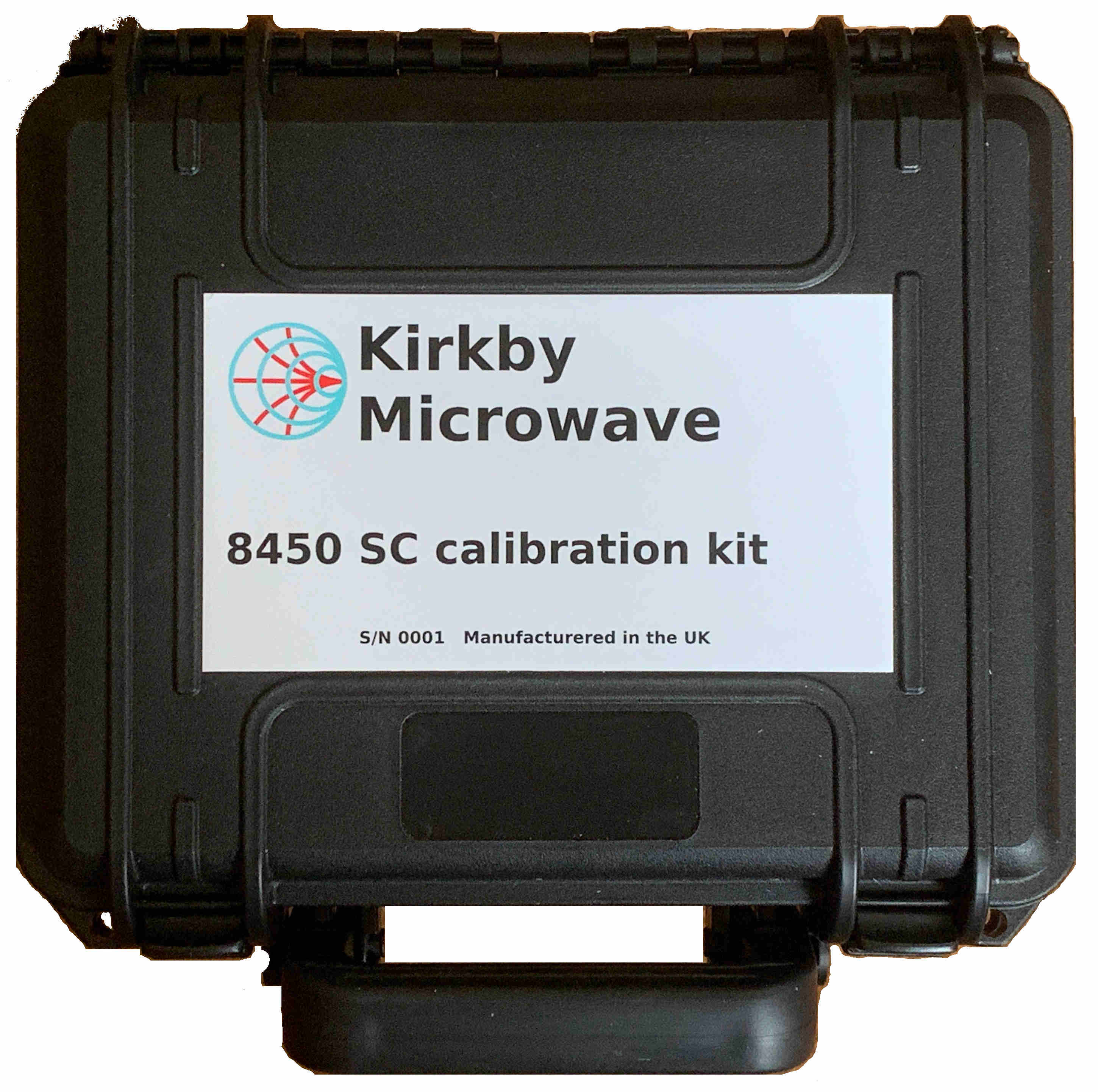

SC calibration kit

Please contact us to ask about custom kits. Please note that custom made calibration kits are not returnable.
